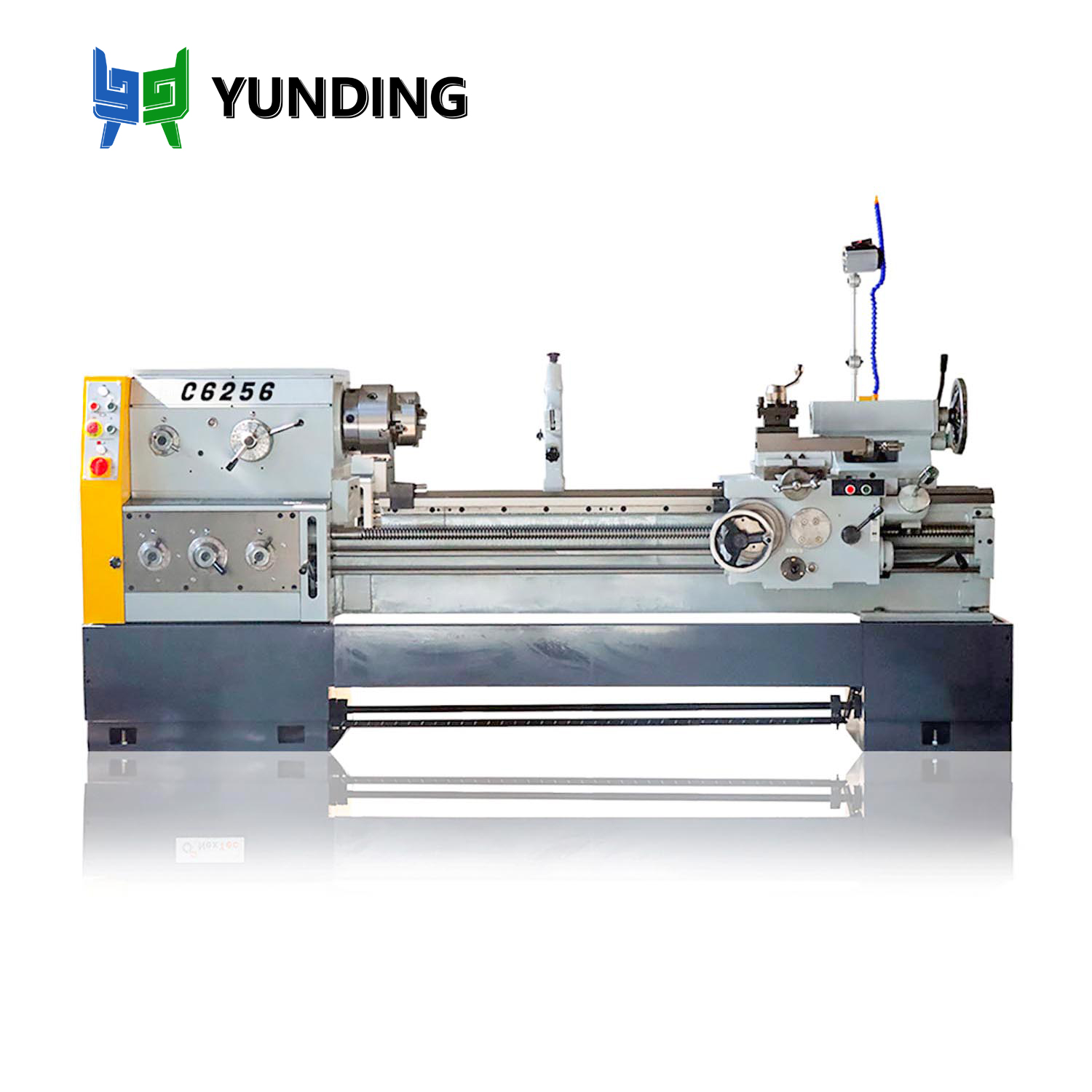

The c series lathe is capable of turning end faces, internal and external cylindrical surfaces, conical surfaces and other rotating surfaces in a variety of materials. It can accurately machine a wide range of metric, inch, modulus and radius section threads. In addition, tasks such as drilling, reaming and oil grooving can be accomplished with ease.
Product Use:
The c series lathe is capable of turning end faces, internal and external cylindrical surfaces, conical surfaces and other rotating surfaces in a variety of materials. It can accurately machine a wide range of metric, inch, modulus and radius section threads. In addition, tasks such as drilling, reaming and oil grooving can be accomplished with ease.
Product Features：
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment
Product Parameters
| SPECIFICATIONS | SPECIFICATION | C6256 |
| Swing over red | 560mm(20") |
| Swing over cross slide | 355mm(11-7/8") |
| Swing in gap | 785mm(29") |
| Length of gap | 200mm(8") |
| Distance between centers | 1000mm(60")/1500mm(60")/2000mm(80")/3000(120") |
| Width of bed | 350mm(13-3/4") |
| Spindle nose | D1-8 |
| Spindle bore | 80mm(3-1/8") |
| Taper of spindle bore | No.7Morse |
| Range of spindle speed | 12 steps, 25-1600r/min |
| Max.travel of compound rest | 130mm(5-1/8") |
| Max.travel of cross slide | 316mm(12-15/16") |
| Leadscrew pitch | 6mm Or 4T.P.L |
| Max.section of tool | 25×25mm(1×1") |
| Longitudinal feeds range | 35 kinds 0.059-1.646mm/rev(0.0022"-0.0612"/rev) |
| Cross feeds range | 42 kinds 0.020-0.573mm(0.00048"-0.01354") |
| Metric threads range | 47 kinds, 0.2-14mm |
| Inch threads range | 60 kinds, 2-112T.P.L |
| Diametrical pitches range | 50 kinds, 4-112D.P. |
| Module pitches range | 34 kinds, 0.1-7M.P. |
| Dia of tailstock sleeve | 75mm(3") |
| Travel of tailstock sleeve | 180mm(7") |
| Morse taper of tailstock sleeve | No.5Morse |
| Cross adjustment | ±13mm(±1/2") |
| Power of main motor | 7.5kw(10HP)3PH |
| Power of coolant pump | 0.1kw(1/8HP),3PH |
| Overall dimension(L×W×H) | 239/284/334/434×115×3575px |
| Packing size(L×W×H) | 245/290/340/440×115×3575px |
| Net weight/Gross weight | 2195/2600 2285/2690 2560/2980 2930/3410 |

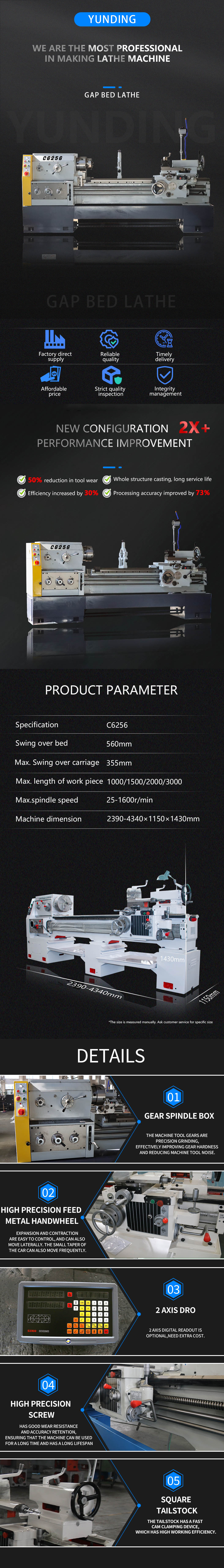

Product Description
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
