The c series lathe is capable of turning end faces, internal and external cylindrical surfaces, conical surfaces and other rotating surfaces in a variety of materials. It can accurately machine a wide range of metric, inch, modulus and radius section threads. In addition, tasks such as drilling, reaming and oil grooving can be accomplished with ease.
Product Use:
The c series lathe is capable of turning end faces, internal and external cylindrical surfaces, conical surfaces and other rotating surfaces in a variety of materials. It can accurately machine a wide range of metric, inch, modulus and radius section threads. In addition, tasks such as drilling, reaming and oil grooving can be accomplished with ease.
Product Features：
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment
Product Parameters

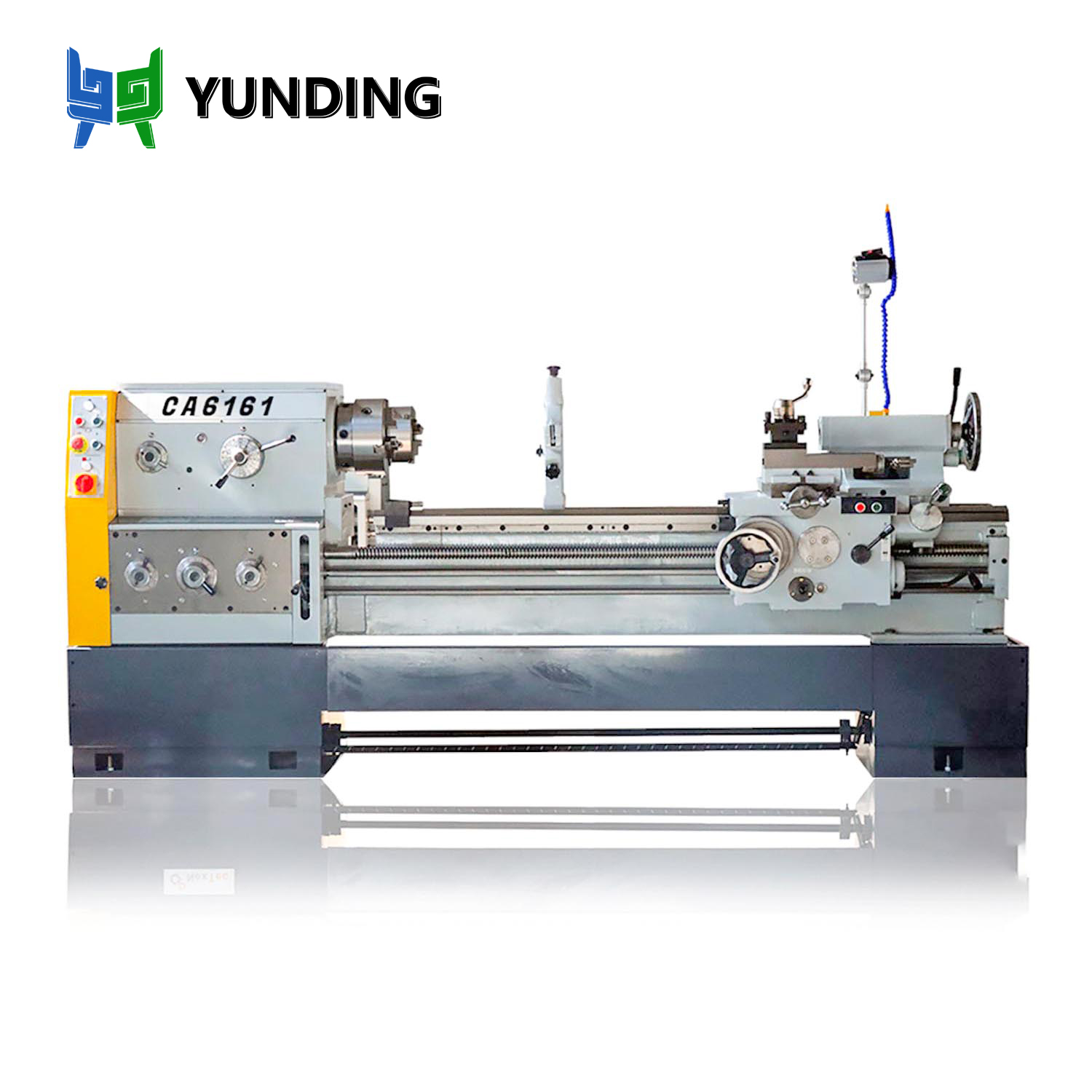

| Specifications | CA6161 CA6161B CA6161C |
| Max. Swing over bed | 610mm |
| Max. Swing over carriage | 370mm |
| Max. swing in gap | -- |
| Effective gap length | -- |
| Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm |
| Width of bed | 400mm |
| Section of turning tool | 25x25mm |
| Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) |
| Hole through spindle | 52mm. (80mm). [105mm] |
| Spindle taper | MT6(φ90 1:20)[φ113 1:20] |
| Feed | Number of feeds | 64 kinds(for each) |
| Range of metric threads(kinds) | (1-192mm)44kinds |
| Range of inch threads(kinds) | (2-24tpi)21kinds |
| Range of module threads(kinds) | 0.25-48(Moduie39kinds) |
| Range of pitch threads(kinds) | 1-96DP(37kinds) |
| Tailstock | Max. tail stock spindle travel | 150mm |
| Tail stock spindle diameter | 75mm |
| Taper of tail stock spindle center hole | MT5 |
| Main motor | 7.5KW(10HP) |
| Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 |
| Overall dimensions for1000mm | 2700x1140x1750 |
| Overall dimensions for1500mm | 3200x1140x1750 |
| Overall dimensions for2000mm | 3700x1140x1750 |
| Overall dimensions for2200mm | 4030x1140x1750 |
| Overall dimensions for3000mm | 4850x1140x1750 |
| Overall dimensions for4000mm | 5800x1140x1750 |
| Weight (kg) | Length | G.W N.W. |
| Weight for 750mm | 2300 2180 |
| Weight for 1000mm | 2380 2250 |
| Weight for 1500mm | 2577 2437 |
| Weight for 2000mm | 2940 2787 |
| Weight for 2200mm | 3120 2970 |
| Weight for 3000mm | 3600 3450 |
| Weight for 4000mm | 3950 3800 |

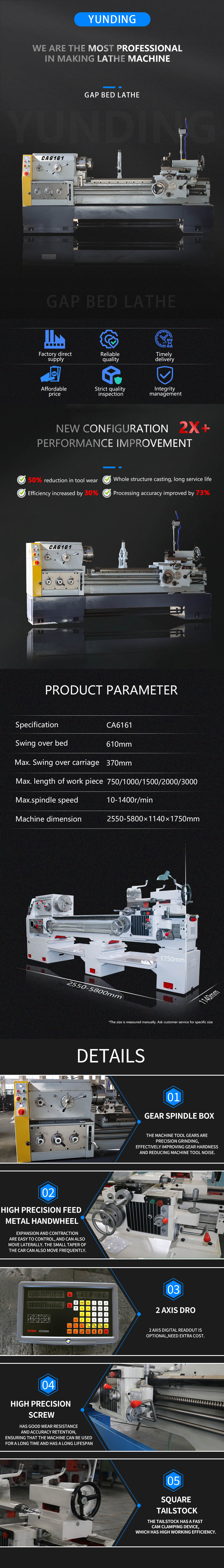

Product Description
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
