It is suitable for all kinds of processing machines, automobile parts, jigs, magnets, mold parts processing industry.
The machine can grind steel, iron, ceramic and non-ferrous metal parts.
Product Use
sed for high-precision metal cutting, it is the ideal equipment for industrial and mining enterprises and small workshops with a wide range of uses.
Product Features
The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
No vibration, low noise motor spindle.

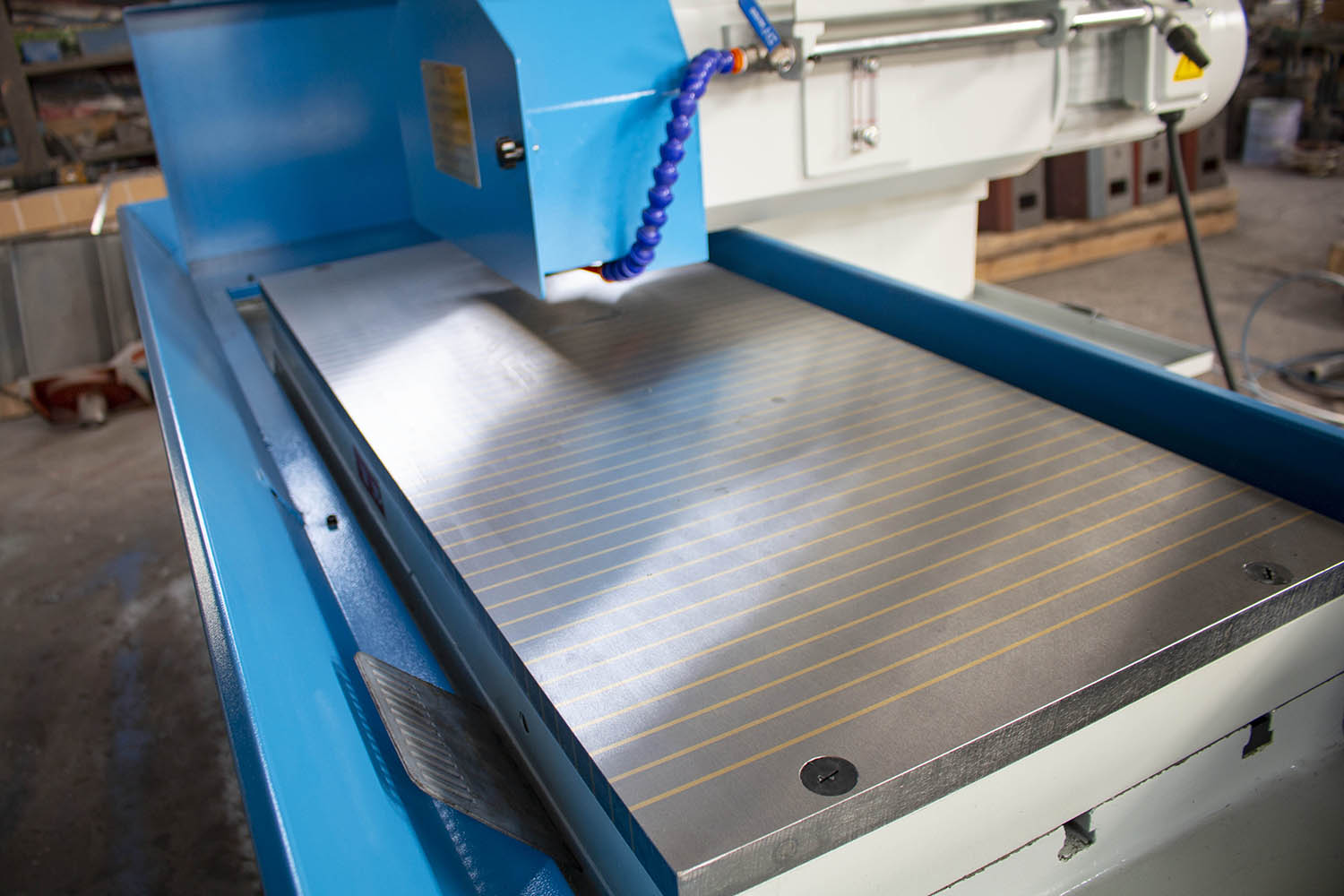

According to the needs of users with a permanent magnet sucker or electromagnetic sucker
Product Parameters
| Description | Units | M7132x1000 | M7132x1600 | M7132x2000 |
| Size of work table(L x W x H) | mm | 1000x320 | 1600x320 | 2000x320 |
| Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 |
| Max. Distance from the spindle centerline to the worktable surface | mm | 570 | 570 | 570 |
| Max. Cross movement of grinding herd | mm | 350 | 350 | 350 |
| Max. Vertical movement of grinding head | mm | 400 | 400 | 400 |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
| Each turn | mm | 1 | 1 | 1 |
| Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | R/min | 1440 | 1440 | 1440 |
| Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 |
| Speed of grinding wheel | r/min | 1440 | 1440 | 1440 |
| Total power of motor | KW | 9 | 10 | 12 |
| Power of spindle motor | KW | 5.5 | 5.5 | 5.5 |
| Power of oil pump motor | KW | 3 | 4 | 5.5 |
| Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 |
| Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 |
| Net weight | Kg | 3500 | 3550 | 3600 |
Product Description
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
