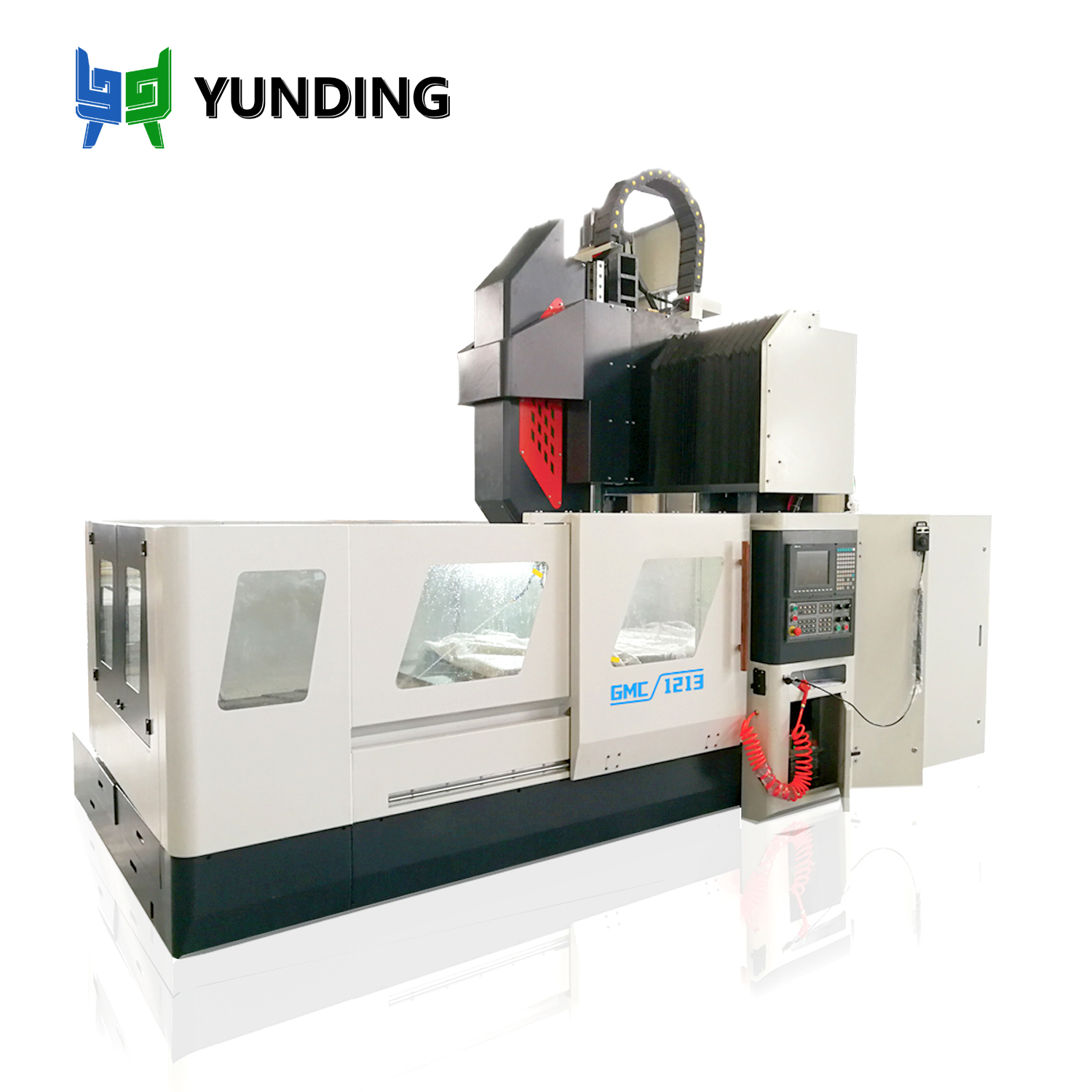

GM series CNC gantry machining center inherits the advantages of traditional gantry machine tools such as strong rigidity of the basic frame, symmetrical structure and good stability. By strengthening the reinforcement structure and reasonable layout, the whole machine is rigid. It has a variety of machining functions, such as chip milling, boring, drilling (expanding and reaming) and tapping.
It is widely used in various machining fields such as automotive, mold, aerospace, packaging, hardware, etc.
Applications:
GM series CNC gantry machining center inherits the advantages of traditional gantry machine tools such as strong rigidity of the basic frame, symmetrical structure and good stability. By strengthening the reinforcement structure and reasonable layout, the whole machine is rigid. It has a variety of machining functions, such as chip milling, boring, drilling (expanding and reaming) and tapping.
It is widely used in various machining fields such as automotive, mold, aerospace, packaging, hardware, etc.
Control System
Standard configuration: GSK
Optional: Siemens/Fanuc/Syntec/Mitsubishi
Automatic tool changer
Standard configuration: 24-tool cap magazine.
Shafts
Taiwan brand high quality spindle, VOLIS/OKADA/ROYAL/AIMACH
Standard Configuration:8000rpm
Optional configuration:10000/12000 rpm
Workbench
High-frequency quenching to improve hardness
3-axis linear guideway
Use high precision Taiwan or Japan brand, HIWIN/PMI/THK et
Screws
3-axis screws, using high-precision Taiwan or Japan brands, HIWIN/PMI/THK, etc.
Lubrication system
The invention can be used timely, quantitatively, accurately, efficiently, conveniently and reliably, which helps to improve the service life of the machine tool.
Pneumatic system
With electronic display for better stability, the air pressure will be very stable when changing tools on the machine and spindle, and there will be no tool jamming.
Electrical parts
Standard configuration: DELIX
Optional configuration: Siemens"
Standard configuration: Electric cabinet heat exchanger
Optional: Electric cabinet air conditioner
Product Parameters
| Specifications | Unit | GMC1213 |
| Work table | Table size | mm | 1400*1000 |
| Max.table load | Kg | 1500 |
| T slot | mm | 7-22*130 |
| Processing capacity | X Axis travel | mm | 1350 |
| Y Axis travel | mm | 1200 |
| Z Axis travel | mm | 600 |
| Gantry width | mm | 1200 |
| Spindle nose to table surface | mm | 160-760 |
| Spindle | Spindle taper |
| BT40 |
| Max.spindle speed | rpm | 10-8000 |
| Feed | Cutting feed speed | m/min | 1/10 |
| X axis rapid traverse | m/min | 18 |
| Y axis rapid traverse | m/min | 18 |
| Z axis rapid traverse | m/min | 12 |
| Motor | X axis servo motor torque | Nm | 18 |
| Y axis servo motor torque | Nm | 18 |
| Z axis servo motor torque | Nm | 28 |
| Main motor power | Kw | 11/15 |
| Guide rail, lead screw | X/Y axis guide rail |
| 45mm roller type linear rail |
| Z axis guide rail |
| 4-45mm roller type linear rail |
| X/Y/Z Ball lead screw |
| 4011 |
| Machine dimension | mm | 3100*2700*4200 |
| Machine weight | kg | 7800 |
Product Description
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
